Reliability and Classical Test Theory

PSYC 520

Learning Objectives

  • Explain the importance of reliability in measurement
  • Explain what true score and error score are in classical test theory (CTT)
  • Define and derive reliability in CTT
  • Explain what parallel, tau-equivalent, and congeneric tests are

Reliability

A test is reliable means that we would obtain very similar scores if we were to repeat the test

aka dependability or consistency across some condition

  • Also precision

  • E.g., across time, items, forms, raters

  • Reliability concerns observed scores

  • Reliability coefficient is not defined for a single score, but a set of (hypothetical) scores

  • On the other hand, precision can be defined for each score

What is Considered Error?

Variability in scores is not necessarily error

E.g., variations in measurement of a person’s weight vs. height across days

What about when an examinee answer a question incorrectly first, and then answer the same question correctly in a second try? Should we consider the difference in response in the two trials “error”?

Classical Test Theory

\[X = T + E\]

  • \(X\): Observed score
  • \(E\): Random error/inconsistencies
  • \(T\): “True” score
    • A hypothetical average score if we could repeatedly test a person, and “brainwash” them after each testing

Propensity Distribution (PD)

See Figure 7.1

Standard deviation of PD = standard error of measurement

Random vs. Systematic Error

CTT assumes random error: \(E_1\), \(E_2\), . . . are independent

  • Errors are also random across persons

In practice, error can be systematic

  • E.g., raters are too lenient; blood pressure meter not calibrated

True Score and Error Score

CTT defines \(T\) = \(\mathop{\mathrm{\mathbb{E}}}(X)\)

So \(T\) can contain systematic error

By construction of CTT

  • The expected value of \(E\) is zero
  • Corr(\(E\), \(T\)) = 0

Reliability in CTT

  • \(\sigma^2_T\) = variance of \(T\) across persons
  • \(\sigma^2_X\) = variance of \(X\) across persons

\[ \rho_{X X'} = \frac{\sigma^2_T}{\sigma^2_X} \]

Note

Reliability in CTT is sample-specific

Because \(T\) is not observed, \(\rho_{X X'}\) cannot be obtained

This is solved using the concept of parallel tests

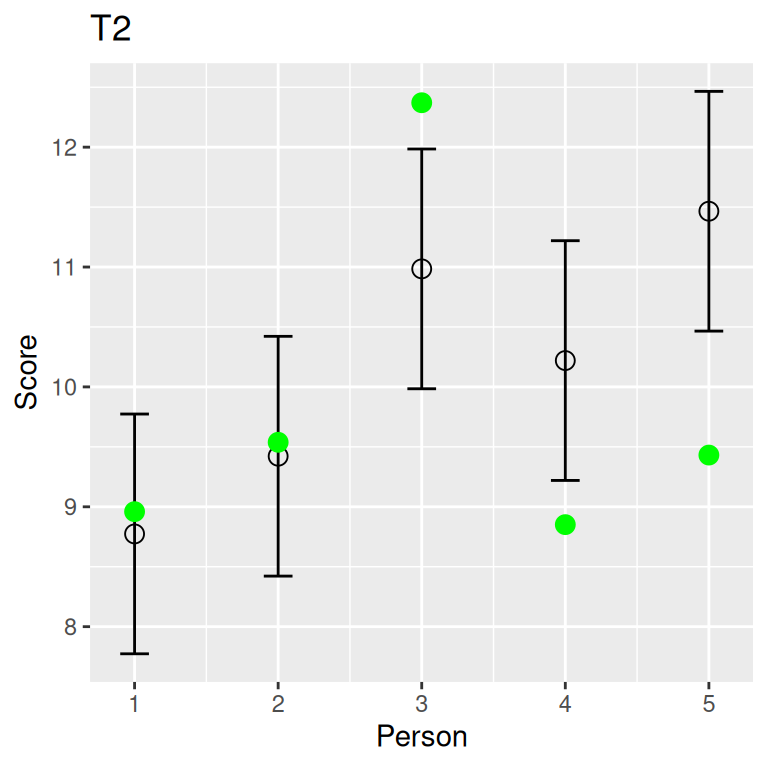

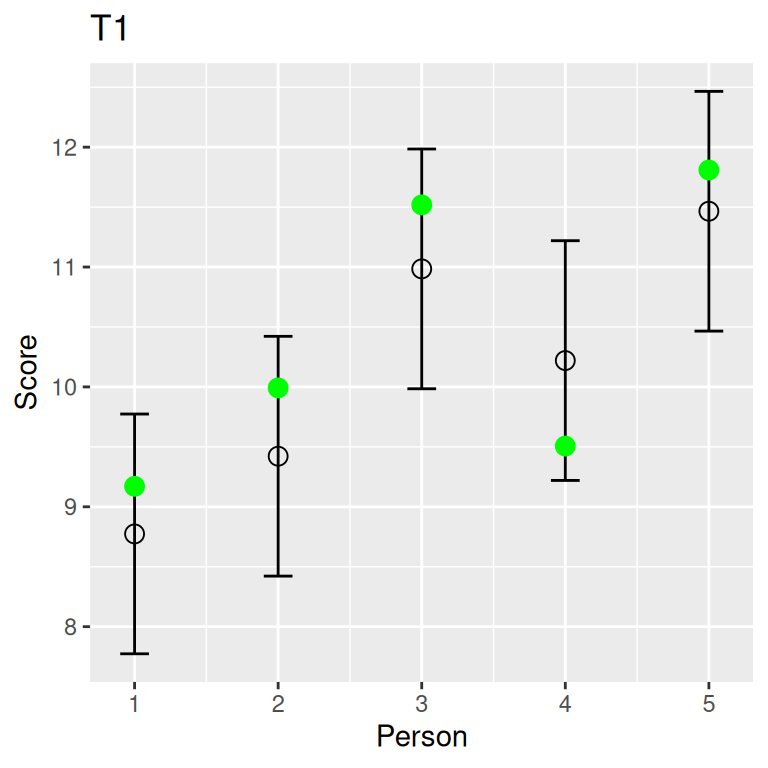

Parallel Tests

If \(X_1\) and \(X_2\) are two parallel tests with true scores \(T_1\) and \(T_2\), they are parallel if and only if

\(T_1\) = \(T_2\); \(\mathop{\mathrm{\mathrm{Var}}}(E_1)\) = \(\mathop{\mathrm{\mathrm{Var}}}(E_2)\)

     t1   x11   x12  x123    t2   x21   x22   x23
1  8.77  9.17  9.21  7.94  8.77  8.96  8.22  9.14
2  9.42  9.99  8.45  9.82  9.42  9.54  8.53 10.20
3 10.98 11.52 10.74 10.70 10.98 12.37 11.02  9.56
4 10.22  9.51 12.00  9.15 10.22  8.85 10.93 10.88
5 11.47 11.81 10.51 12.07 11.47  9.43 14.06 10.90

Without loss of generality, assume \(X_1\) and \(X_2\) have been centered

\[ \mathop{\mathrm{\mathbb{E}}}(X_1 X_2) = \mathop{\mathrm{\mathbb{E}}}(T_1 T_2) + \mathop{\mathrm{\mathbb{E}}}(T_1 E_2) + \mathop{\mathrm{\mathbb{E}}}(T_2 E_1) + \mathop{\mathrm{\mathbb{E}}}(E_1 E_2) \]

The last three terms are zero by construction

Because \(T_1\) = \(T_2\) = \(T\), and \(\mathop{\mathrm{\mathbb{E}}}(T)\) = 0,

\[ \mathop{\mathrm{\mathbb{E}}}(X_1 X_2) = \mathop{\mathrm{\mathbb{E}}}(T^2) = \sigma^2_T \]

With parallel tests, \(\mathop{\mathrm{\mathrm{Var}}}(X_1)\) = \(\mathop{\mathrm{\mathrm{Var}}}(X_2)\) = \(\sigma^2_X\), so

\[ \rho_{X X'} = \frac{\sigma^2_T}{\sigma^2_X} = \frac{\mathop{\mathrm{\mathbb{E}}}(X_1 X_2)}{\sqrt{\mathop{\mathrm{\mathrm{Var}}}(X_1) \mathop{\mathrm{\mathrm{Var}}}(X_2)}} \]

where the last term is the correlation between \(X_1\) and \(X_2\)

So,

Reliability = Correlation between two parallel tests

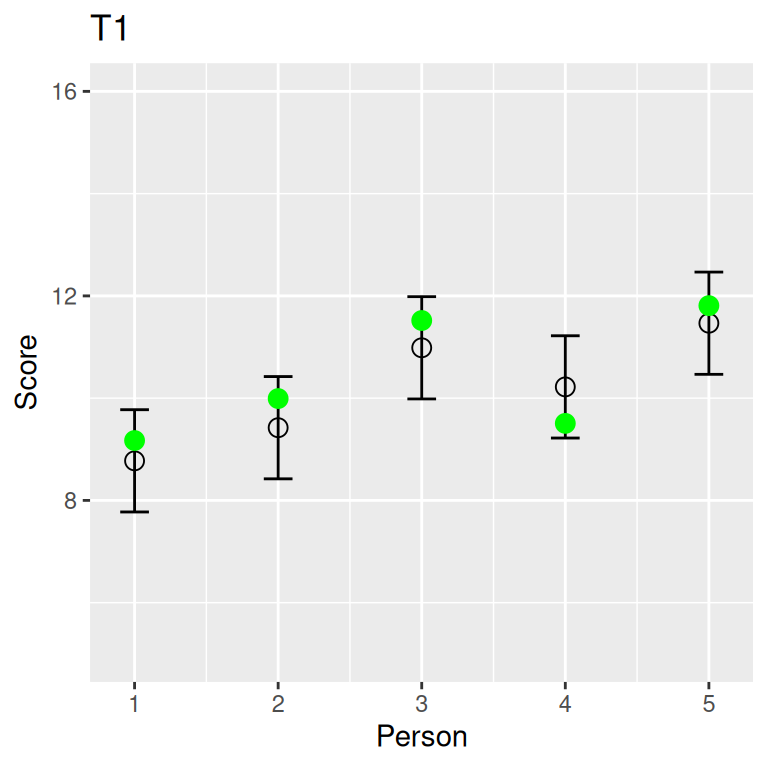

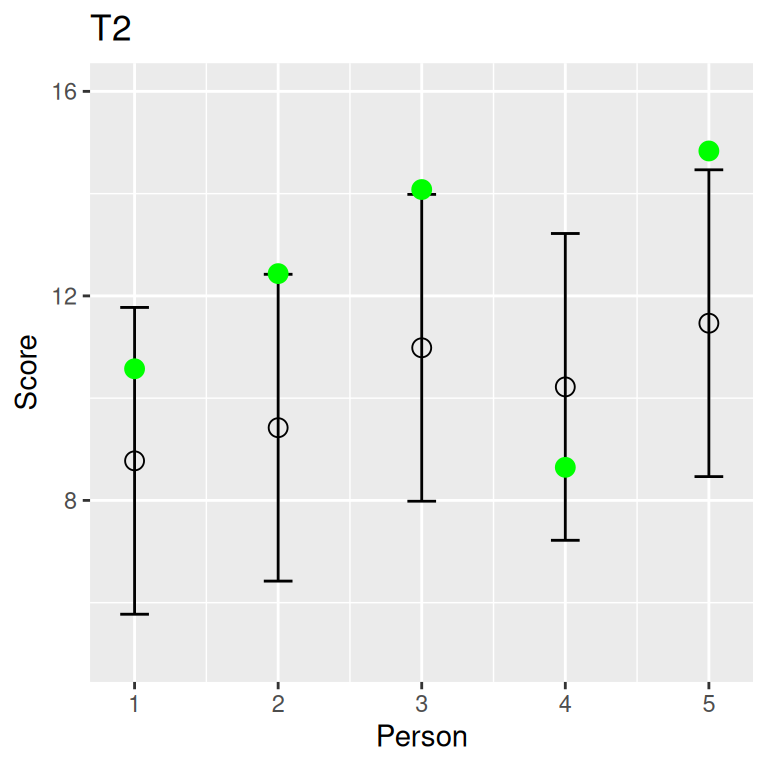

Tau-Equivalent Tests

\(T_1\) = \(T_2\); \(\mathop{\mathrm{\mathrm{Var}}}(E_1)\) may be different from \(\mathop{\mathrm{\mathrm{Var}}}(E_2)\)

     t1   x11   x12  x123    t2   x21   x22   x23
1  8.77  8.01  9.05  9.26  8.77 10.57 11.82  3.92
2  9.42  8.80  9.33 10.14  9.42 12.44 10.18  5.65
3 10.98 10.01 12.44 10.51 10.98 14.08 11.37  7.51
4 10.22 12.59  8.85  9.22 10.22  8.65  8.39 13.62
5 11.47 10.75 11.30 12.34 11.47 14.83  6.09 13.48

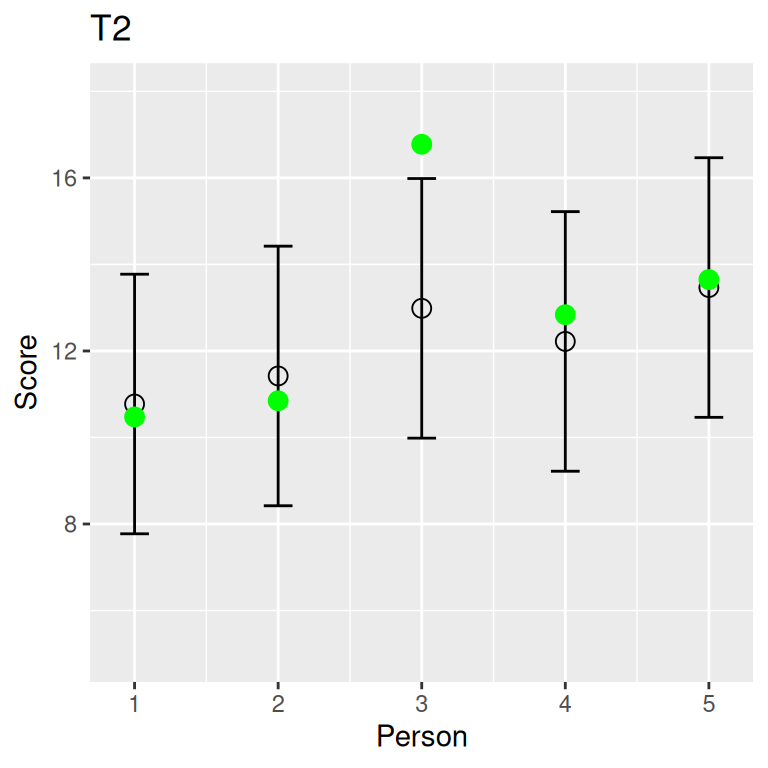

Essentially Tau-Equivalent Tests

\(T_1\) = \(a\) + \(T_2\); \(\mathop{\mathrm{\mathrm{Var}}}(E_1)\) may be different from \(\mathop{\mathrm{\mathrm{Var}}}(E_2)\)

     t1   x11   x12  x123    t2   x21   x22   x23
1  8.77  8.56  8.41  9.35 10.77 10.47 12.11  9.74
2  9.42  9.36  8.99  9.91 11.42 10.85 12.62 10.80
3 10.98 10.67 11.02 11.27 12.98 16.78 11.17 11.01
4 10.22 10.72 10.08  9.86 12.22 12.84  8.27 15.56
5 11.47 12.27 10.45 11.67 13.47 13.65 12.40 14.34

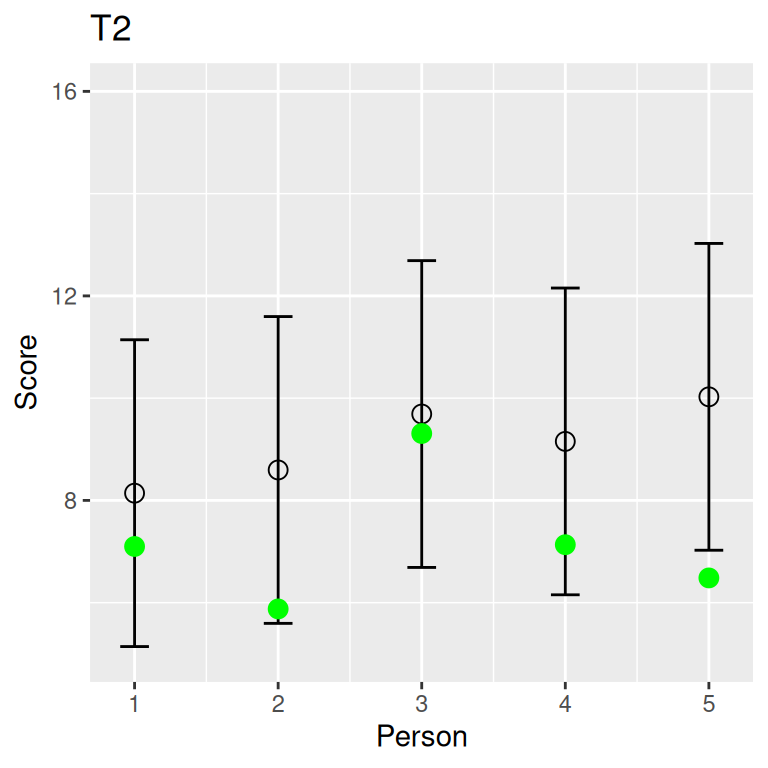

Congeneric Tests

\(T_1\) = \(a\) + \(\color{red}{b}\) \(T_2\); \(\mathop{\mathrm{\mathrm{Var}}}(E_1)\) may be different from \(\mathop{\mathrm{\mathrm{Var}}}(E_2)\)

     t1   x11   x12  x123    t2  x21   x22   x23
1  8.77  9.45  8.14  8.73  8.14 7.10  5.59 11.74
2  9.42  7.39 10.54 10.34  8.60 5.88 12.82  7.09
3 10.98 10.77 11.08 11.10  9.69 9.31 10.42  9.34
4 10.22  9.04 10.48 11.13  9.15 7.13 11.24  9.09
5 11.47 11.91 11.23 11.25 10.03 6.48 14.66  8.94

Additional Note on Reliability in CTT

  • Theoretically speaking, \(0 \leq \rho_{X X'} \leq 1\)

  • \(\rho_{X X'}\) = squared correlation between \(T\) and \(X\) (think of \(R^2\))

  • Only one error variance is estimated, which is the average of error variance across persons
