Estimation of 1-PL Model

library(lme4, include.only = "GHrule")

Warning in check_dep_version(): ABI version mismatch:
lme4 was built with Matrix ABI version 2
Current Matrix ABI version is 1
Please re-install lme4 from source or restore original 'Matrix' package

library(mirt)

For simplicity, I assume $Da = 1$ here; in practice $a$ is usually estimated with 1-PL.

Conditional likelihood (assumed $\theta$ known)

Let $P_i(\theta_j)$ = $P(Y_{i} = 1 \mid \theta = \theta_j)$

If $Y_{ij} = 1$,

\[ \mathcal{L}(b_i; y_{ij}, \theta_j) = P_i(\theta_j) \]

If $y_{ij} = 0$,

\[ \mathcal{L}(b_i; y_{ij}, \theta_j) = 1 - P_i(\theta_j) \]

Marginal Likelihood (Integrating out $\theta$)

Let $\theta_j \sim N(0, 1)$, meaning its probability density is

\[ f(\theta) = \Phi(\theta) = \frac{1}{\sqrt{2 \pi} \sigma} e^{-\theta^2 / 2} \]

\[ \mathcal{L}(b_i; Y_{ij} = 1) = \int_{-\infty}^\infty P_i(t) \Phi(t) \,\mathrm{d} t \]

and

\[ \ell(b_i; Y_{ij} = 1) = \log \left[\int_{-\infty}^\infty P_i(t) \Phi(t) \,\mathrm{d} t\right] \]

Combining $N$ independent observations, and let $\bar y_i$ be the mean of item $i$ (i.e., proportion scoring 1),

\[ \begin{aligned} \ell(b_i; y_{i1}, y_{i2}, \ldots, y_{iN}) & = N \left\{\bar y_i \log \left[\int_{-\infty}^\infty P_i(t) \Phi(t) \,\mathrm{d} t \right] \right. \\ & \quad \left. {} + (1 - \bar y_i) \log \left[1 - \int_{-\infty}^\infty P_i(t) \Phi(t) \,\mathrm{d} t \right]\right\} \end{aligned} \]

Maximum likelihood estimation finds values of $b_i$ that maximizes the above quantity. However, the above quantity involves an integral, which does not generally have an analytic solution. More typically, we use Gaussian-Hermite quadrature to approximate the integral.

Quadrature

See https://en.wikipedia.org/wiki/Gauss%E2%80%93Hermite_quadrature

# Approximate z^2 for z ~ N(0, 1)
ghq5 <- lme4::GHrule(5)
sum(ghq5[, "w"] * ghq5[, "z"]^2)

[1] 1

pj <- function(theta, bj) plogis(theta - bj)
sum(ghq5[, "w"] * pj(ghq5[, "z"], bj = 1))

[1] 0.303218

sum(ghq5[, "w"] * pj(ghq5[, "z"], bj = 2))

[1] 0.1555028

loglik_1pl <- function(b, n, ybar, gh_ord = 5) {
    ghq <- lme4::GHrule(gh_ord)
    int_pj <- sum(ghq[, "w"] * pj(ghq[, "z"], bj = b))
    n * (ybar * log(int_pj) + (1 - ybar) * log1p(-int_pj))
}
loglik_1pl(1, n = 1000, ybar = 828 / 1000)

[1] -1050.196

# Vectorized version
pj <- function(theta, bj) plogis(outer(theta, Y = bj, FUN = "-"))
loglik_1plj <- function(b, n, ybar, ghq = lme4::GHrule(5)) {
    int_pj <- crossprod(ghq[, "w"], pj(ghq[, "z"], bj = b))
    as.vector(
        n * (ybar * log(int_pj) + (1 - ybar) * log1p(-int_pj))
    )
}
loglik_1plj(c(-1, 0, 1), n = 1000, ybar = 828 / 1000)

[1]  -504.3902  -693.1472 -1050.1957

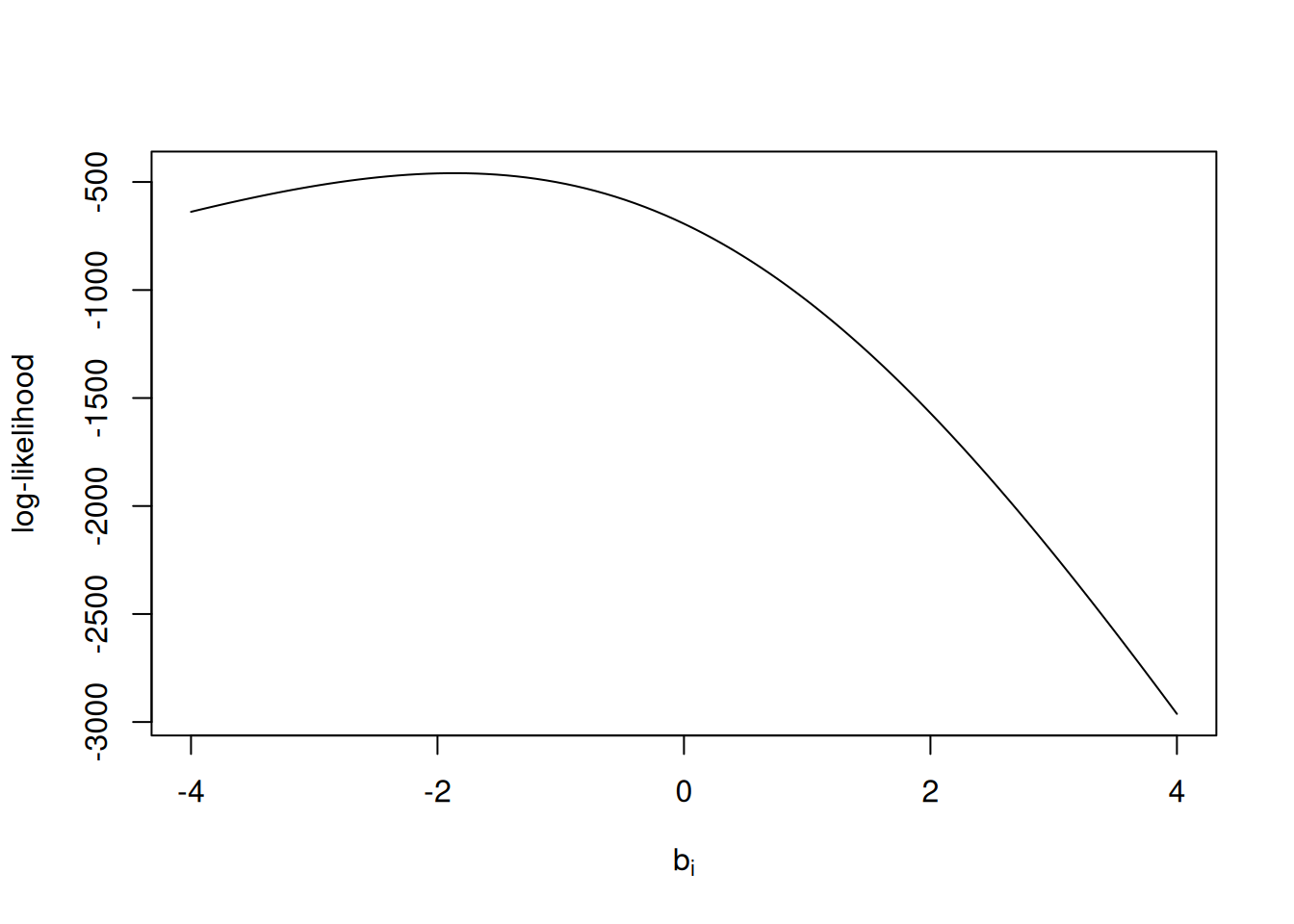

curve(loglik_1plj(x, n = 1000, ybar = 828 /1000),
      from = -4, to = 4,
      xlab = expression(b[i]),
      ylab = "log-likelihood")

# Optimization
optim(0,
    fn = loglik_1plj,
    n = 1000, ybar = 828 / 1000,
    method = "L-BFGS-B",
    # Minimize -2 x ll
    control = list(fnscale = -2)
)

$par
[1] -1.862783

$value
[1] -459.0433

$counts
function gradient
       7        7

$convergence
[1] 0

$message
[1] "CONVERGENCE: REL_REDUCTION_OF_F <= FACTR*EPSMCH"

While here we assume $a$ is known, in reality, $a$ needs to be estimated as well and require we obtain the joint likelihood by adding up the likelihood across all items (assuming local independence).
